Acer FA100 M.2 PCIe NVMe SSD

Acer FA100, M.2 NVMe PCIe Gen3 x 4 SSD, full of the latest technology, 128 GB up to 2 TB, read- & write- speeds up to 3300 / 2700 MB/s
  • Read speed up to 3300 MB/s
  • 4K LDPC error correction
  • Cost-saving energy efficiency
Overview Specifications Downloads Related Products

THE SPEED TO SUCCEED, WIN AT WORK OR PLAY

Built from original high-quality 3D NAND wafers, Acer’s FA100 M.2 SSD has become the winner in the marketplace. Making use of its sequential read speed up to 3300 MB/s and sequential write speeds up to 2700 MB/s, the FA100 M.2 SSD handles high workloads efficiently.

SAFEGUARDING YOUR DATA,
4K LDPC HIGH-ORDER ERROR CORRECTION

FA100 M.2 SSD supports ECC error correction technology and S.M.A.R.T. function, based on 4K LDPC which enables stronger error correction capabilities and improved secure data storage. This effectively reduces data errors that may occur during SSD read and write, avoiding bad blocks for better performance and more reliability.

LESS LATENCY BY DESIGN,
BETTER PERFORMANCE

FA100 M.2 SSD supports HMB function which enables the underlying storage to make use of a portion of host memory effectively reducing SSD latency by simulating SLC cache. More optimizations improve read and write performance and the drive even supports TRIM instructions to significantly reduce write amplification and effectively extend SSD life. Each SSD comes bundled with Acronis True-Image backup software.

TRIED AND TESTED,
TECHNICAL EXPERTISE

FA100 M.2 SSD uses only high-quality original wafers. From design to material selection, from production to quality control, the unit undergoes multiple tests and rigorous evaluations to ensure higher readability and excellent performance overall.

ULTRA-LOW POWER-CONSUMPTION, IDEAL CHOICE FOR LAPTOP AND DESKTOP STORAGE EXPANSION

FA100 M.2 SSD adopts a single-sided board design, lightweight and thin for easy installation. It supports multiple technologies such as modern standby and ultra-low power consumption. The maximum power consumption of the 2 TB version is only 3.96 Watts. After installation, it can effectively control the power consumption of your system and extend its battery life.

GLOBAL WARRANTY,
PROFESSIONAL SUPPORT

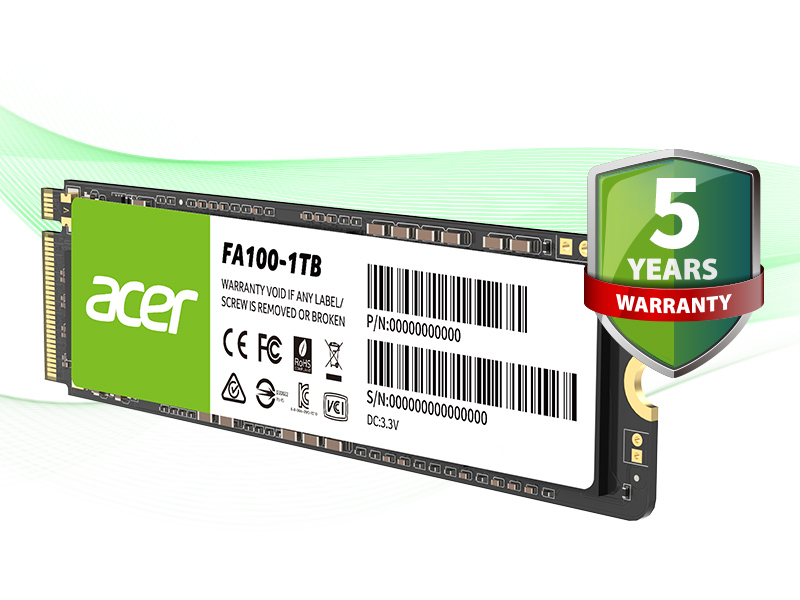

  • • 5-year limited warranty
  • Worldwide service channels to support you
  • Numerous professional certifications (including security)

BIWIN INTELLIGENCE SOFTWARE

Biwin Intelligence is multifunctional management software, designed to support Acer branded storage products. For a more convenient and more secure storage experience, this software helps users manage their drives with features like performance test, data migration, drive cloning, and more.

Download: Biwin Intelligence

Specifications

Model Name

FA100


Capacity
128 GB256 GB512 GB1 TB2 TB
Interface
PCIe Gen3 x4, NVMe1.4
Form Factor
M.2 2280
Max. Sequential Reading Speed
950 MB/s, 1950 MB/s, 3200 MB/s, 3300 MB/s, 3150 MB/s
Max. Sequential Writing Speed
650 MB/s, , 1300 MB/s, 2200 MB/s, 2700 MB/s, 2600 MB/s
Random Read Speed
103K, 202K, 317K, 402K, 375K IOPS
Random Write Speed
158K IOPS, 280K IOPS, 286K IOPS, 261K IOPS, 280K IOPS
Storage Temperature
-40 ℃ to 85 °C
Working Temperature
0 °C to 70 °C
Dimensions
80 × 22 × 2.3 mm
Weight
6.35 g ± 3 g
Limited Warranty

5 Year/70 TBW, 5 Year/150 TBW, 5 Year/300 TBW, 5 Year/600 TBW, 5 Year/1200 TBW


*5 years or TBW, whichever comes first.
*Product images shown above are for reference only. For specifics, please refer to the actual product.
*Product packaging, appearance, and additional software may vary due to shipping dates and available inventory.
*Maintenance and future updates are required throughout the product lifecycle. Specifications are subject to change without notice.

Downloads

Acer FA100 M.2 SSD User Manual Acer FA100 Specifications
